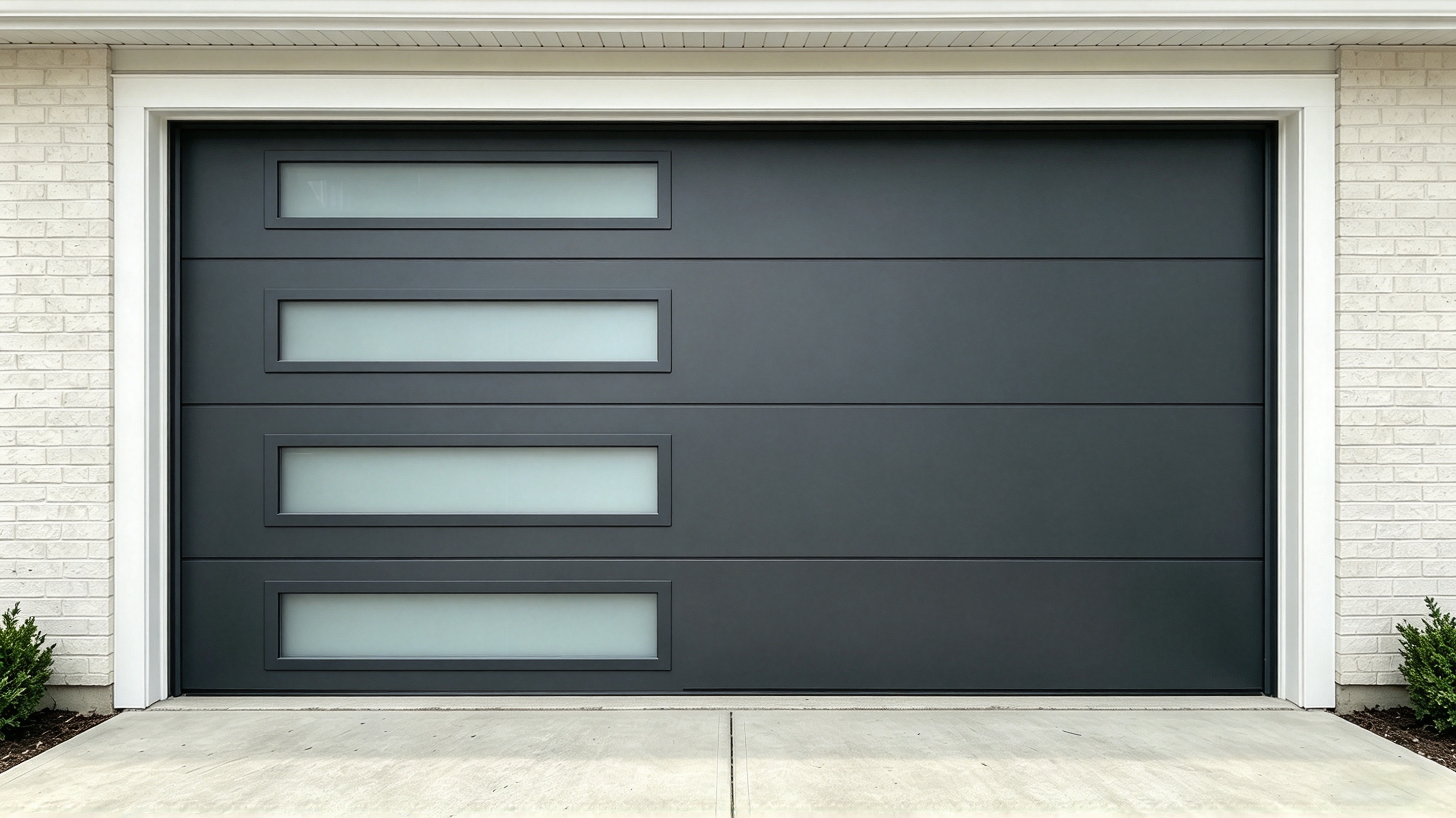

Flush Aluminium Solid Panel Sectional Overhead Garage Doors

Flush Aluminium Panel Sectional Garage Doors address a recurring challenge in modern architecture: how to specify a garage door that integrates seamlessly with a building's facade without compromising on structural performance or thermal efficiency. At Foshan Alliance Times Building Materials Co., Ltd., we engineer these doors for homeowners, architects, and commercial project managers who need a product that performs to international standards and installs cleanly on the first attempt.

Panel Construction and Engineering Specifications

The foundation of any sectional overhead garage door is its panel. Our flush aluminium solid panels are available in two configurations: a single-layer aluminium build for projects where weight and budget are the primary constraints, and a double-layer Premium Aluminium Flush Sandwich Panel for applications that demand higher rigidity and thermal break performance.

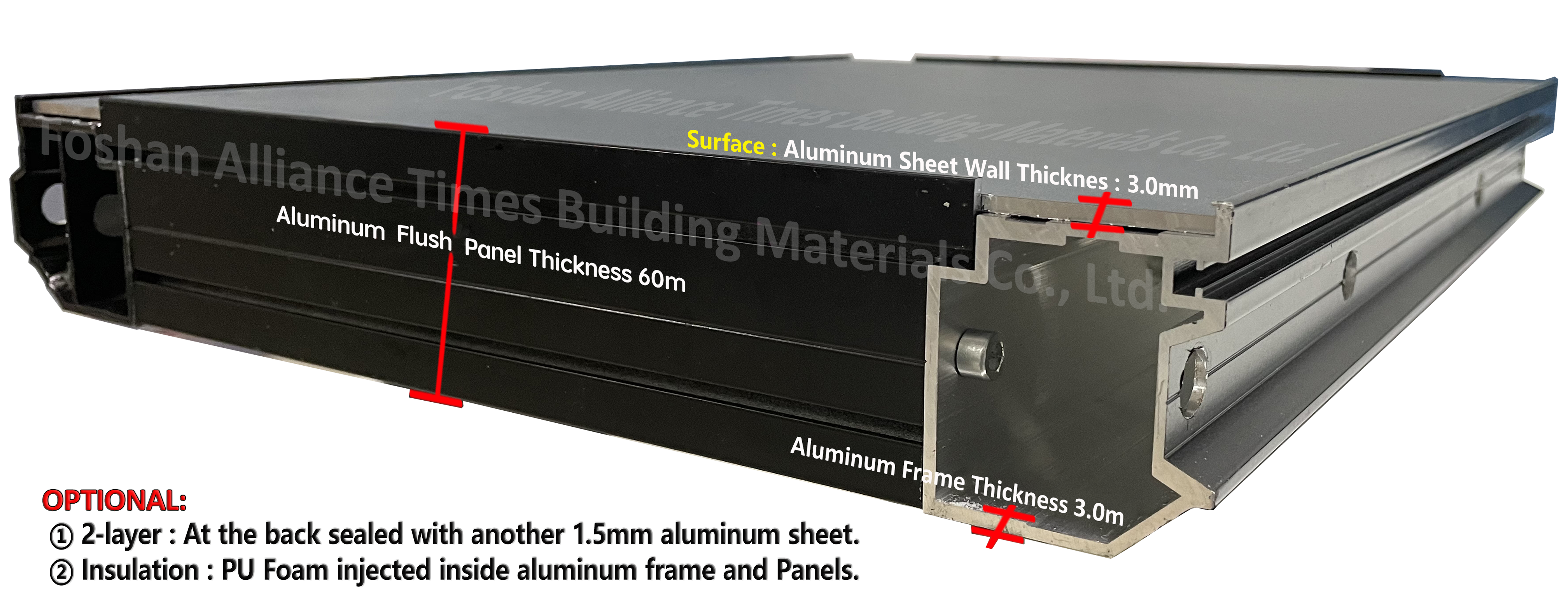

The standard panel thickness is 60 mm, with an aluminium wall thickness of 3.0 mm and an aluminium sheet thickness of 3.0 mm on both faces. These figures are not arbitrary. A 3.0 mm sheet provides sufficient rigidity to resist deflection across spans typical of residential and light-commercial garage openings, while the 60 mm core depth creates a thermal break that separates the interior and exterior aluminium faces — reducing conductive heat transfer and limiting condensation risk in climate-controlled garages.

The sandwich construction also adds mass without adding proportional weight. Aluminium's density is roughly one-third that of steel, so a completed double-layer panel assembly remains light enough for a single-operator motor to cycle reliably over thousands of openings, yet stiff enough to resist wind loading in exposed installations.

Flush Mount Design and Architectural Integration

The term "flush" in this product line refers to the mounting method and the visual result. A flush mount installation positions the door panel flush with the surrounding wall plane when closed. There are no external fasteners visible on the face of the panel — the fixing points are concealed within the frame and side tracks. The result is a continuous, unbroken surface that reads as part of the building envelope rather than an afterthought bolted onto it.

This matters for projects where the garage elevation is visible from the street or where the architect has specified a uniform material language across the facade. Flush aluminium panels accept a range of cladding overlays — aluminium cassettes, flat sheets, and slat designs — so the door face can match adjacent wall cladding, ventilation screens, or entrance features without requiring a separate material order from a different supplier.

Durability and Corrosion Resistance

Aluminium forms a self-healing oxide layer when exposed to atmosphere. That oxide layer protects the substrate from further oxidation, which is why aluminium garage doors resist rust and corrosion in conditions that would degrade a steel panel — coastal salt air, high-humidity subtropical climates, and industrial environments with airborne chemical particulates.

With minimal maintenance — typically a periodic wash with mild detergent and water — an aluminium sectional door maintains its structural integrity and surface finish for 20 to 30 years. The powder-coated or anodized finishes we apply are specified to resist UV fading and chalking, so the colour you specify at the quoting stage is the colour the door presents a decade later.

Thermal Insulation and Energy Efficiency

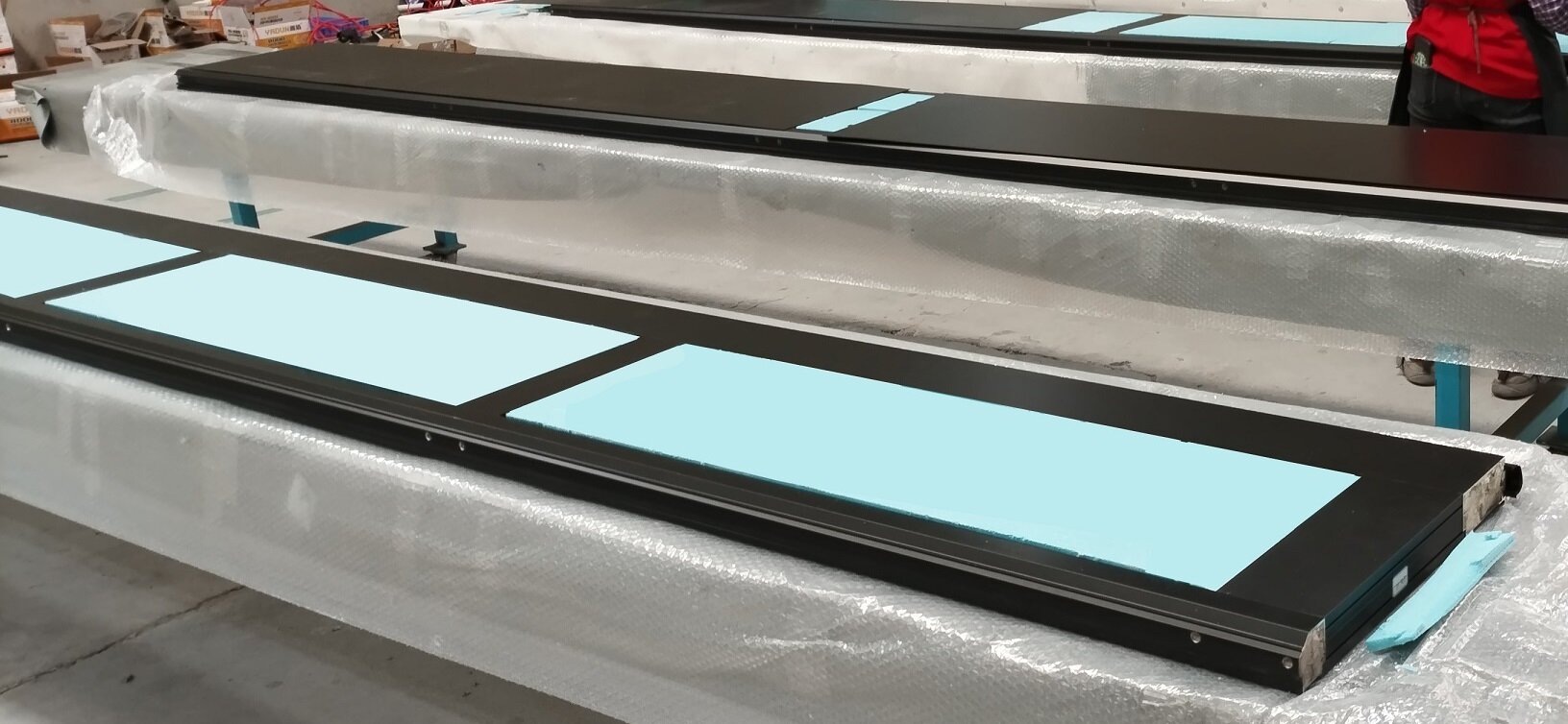

For garages attached to living spaces, or garages used as workshops, gyms, or storage for temperature-sensitive items, thermal performance is a functional requirement, not a luxury. The 60 mm sandwich panel core acts as an insulating barrier. By reducing heat conduction between the garage interior and the outside environment, the panel helps stabilize indoor temperature and reduces the energy required for heating or cooling.

In practice, this translates to lower running costs for climate-controlled garages and a measurable reduction in condensation formation on the interior panel surface — a common failure point in uninsulated steel doors that leads to water staining, mould growth, and damage to stored items.

Safety Mechanisms and Operational Performance

Sectional overhead doors operate under spring tension, and any door under tension requires engineered safety provisions. Our flush aluminium sectional doors include finger trap protection between panel sections to prevent injury during closing, anti-fall devices that engage if a torsion spring were to break — preventing the door from dropping under its own weight — and cable safety mechanisms that arrest uncontrolled descent.

The lightweight nature of aluminium panels also reduces the load on the garage door opener motor and drive mechanism. A lighter door means less mechanical strain per cycle, which extends the operational lifespan of the motor, reduces maintenance frequency, and allows the use of a lower-rated (and lower-cost) opener without sacrificing cycle speed.

Customization, Color Range, and Sizing

We manufacture flush aluminium sectional doors to the opening dimensions of each project. A typical residential installation might specify an opening of approximately 5000 mm × 2200 mm, but we produce doors across a range of widths and heights to suit single-car, double-car, and commercial vehicle openings.

Color specification follows the RAL system, with access to the full RAL palette for projects that require an exact architectural match. Bespoke shades are available for larger production runs where a non-standard finish has been specified by the project's design team. The cladding overlay options — cassette, flat sheet, and slat — allow further differentiation without leaving the aluminium material family.

Why Specify Flush Aluminium from Foshan Alliance Times

We have manufactured aluminum garage doors since 2019, delivering to projects in over 50 countries. Our production facility in Foshan handles the full process — from extrusion and panel fabrication through to surface finishing and pre-assembly testing — under a single quality management system. Every door ships with documentation conforming to international standards, and our technical team supports specifiers with opening measurements, glass type selection, color matching, and motor voltage configuration before production begins.

For project pricing, technical data sheets, or samples, request a quote through our website or contact us directly. We respond to technical enquiries within one business day.
